泛光灯

HXD-FDL-K300-150WCW

HXD-FDL-K300-150WCW

■ General Description描述

高效节能:系统效率高达110lm/w以上,比金卤灯节能56%以上,配合控制系统性能节能高至85%。
- 持久可靠:30000小时以上超长寿命,拒接频繁更换。
- 显色性高:还原物体本来色彩,降低炫光,体验舒适。
- 高强度压铸铝材体:确保安装的强度和安全性,并有助于散 热和灯体内部元器件的长久使用。

 -High efficiency and energy saving: the system efficiency is more than 110lm/w, energy saving is 56% higher than that of metal halide lamp, and energy saving is up to 85% with control system performance.
-durable and reliable: more than 30000 hours of ultra-long life, refuse to accept frequent replacement.
-High color rendering: restore the original color of the object, reduce glare, and experience comfort.

-High strength die casting aluminum body: ensures the strength and safety of the installation, and contributes to the heat dissipation and the long-term use of the internal components of the lamp body.

  Applications产品应用

- 是道路隧道、桥梁、地标、古迹、大型球馆场照明的理想之选。


■  Technical Parameters技术参数

●  Lighting parameters灯具参数
Item
HXD-FDL-K300-50WCW
Power
150W
Input voltage
AC100-277V
Driver
隔离isolated内置 built-in
Frequency
50-60HZ
PF
>0.9
LED Quantity
OSRAM/PHILIPS 3030 6V/W 336pcs
Light efficiency
≧150LM/W
Lumen
-
Color Temperature
-
CRI
                 Ra>80
Beam angle
15°30°45°60°120°
Lifespan
≥30000Hrs
IP
IP66

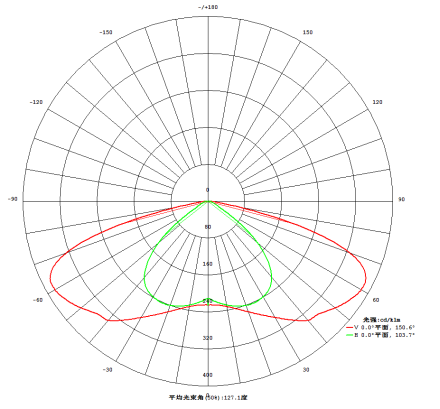

配光曲线

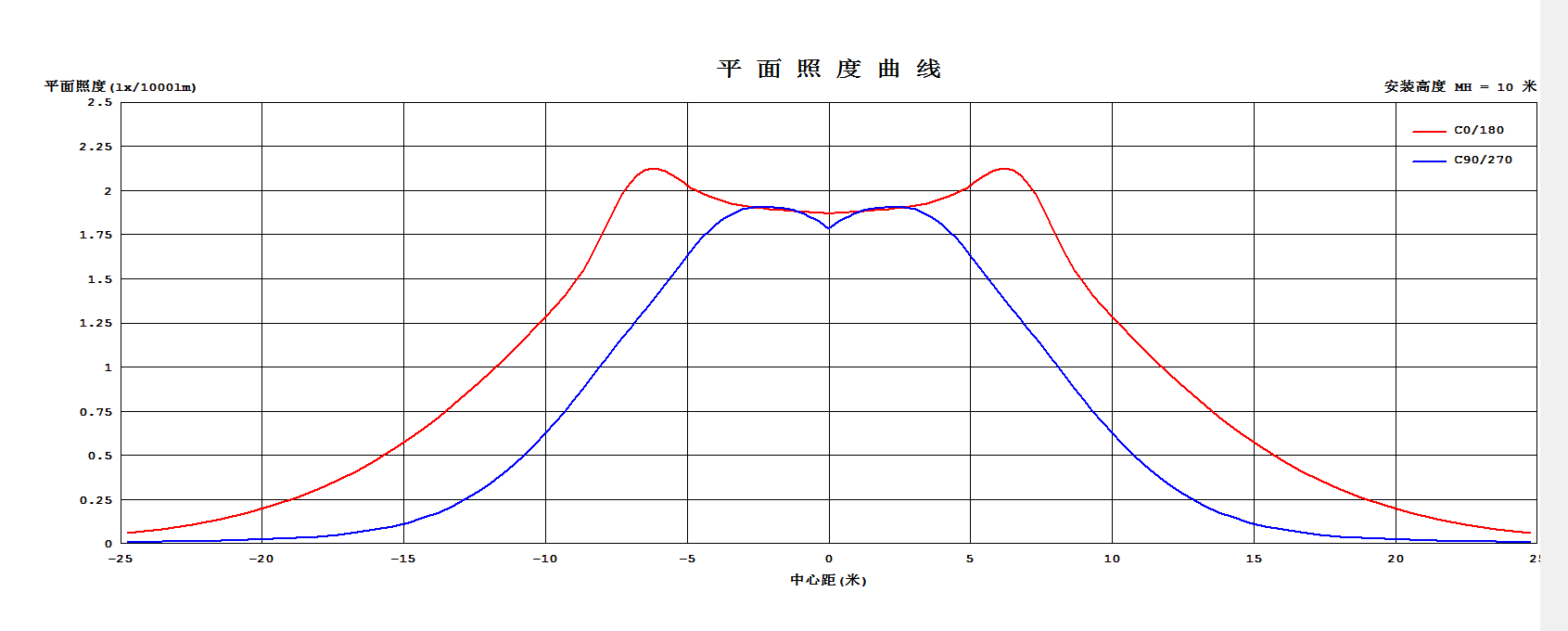

平均照度曲线

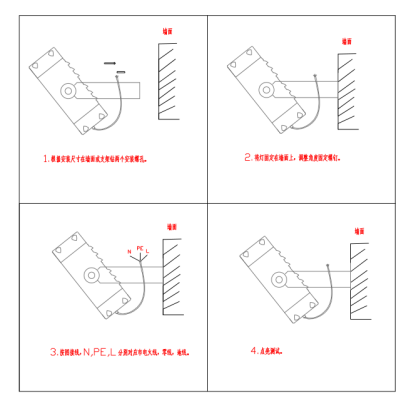

■ Product Installation Diagram 安装示意图
