线条灯

HXD-LLI-11WWW

HXD-LLI-11WWW

  • General Description描述

led线条灯适用各种各样房屋建筑,室内室外部分或轮廊照明灯具,非常合适室内室外休闲娱乐会所,房屋建筑轮廊勾勒及广告牌的制做等。

Led Line lights are suitable for all kinds of buildings, indoor and outdoor parts or wheel corridor lighting, very suitable for indoor and outdoor leisure clubs, wheel corridor outline of housing construction and the production of advertising signs, etc.


  Applications产品应用

●  Outdoor landscape lighting, lighting works.
户外景观照明,亮化工程。
●  Municipal works, interior stage lighting.
市政工程,室内舞台灯光。
●  Hall, conference room, shopping malls.
大厅、会议室、商场.+


■  Technical Parameters技术参数

Item HXD-LLI-11WWW
Power 11W
Input voltage AC90-265V
Output DC24V
Driver 隔离isolated外置External placement
Frequency 50-60HZ
PF >0.9
LED Quantity 5050 3V/0.2W  48pcs
Light efficiency ≧85LM/W
Lumen 935LM
Color Temperature 2200k-6500k
CRI Ra>80
Beam angle 45°
Lifespan ≧25000Hrs
IP IP65

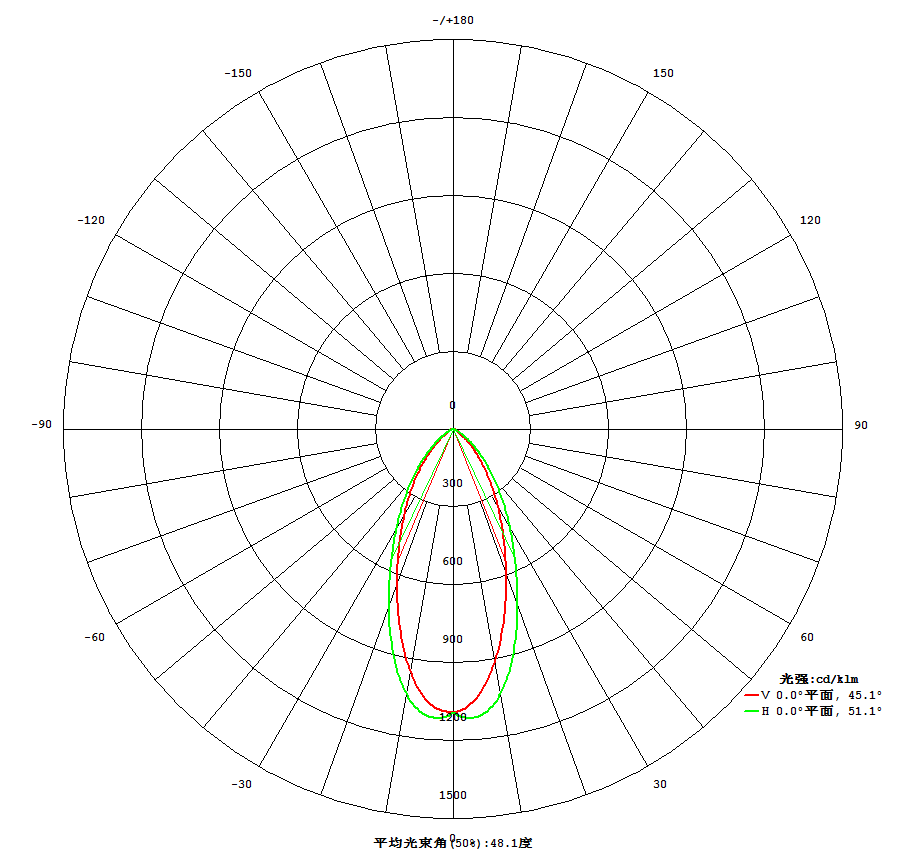

配光曲线

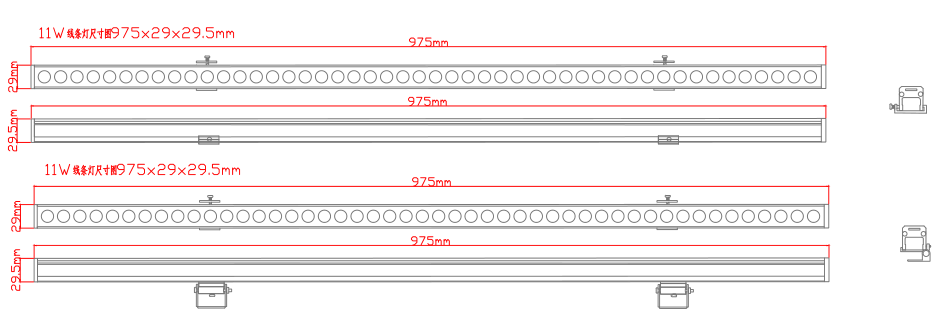

  • Outline Dimension外形尺寸
Unit:mm

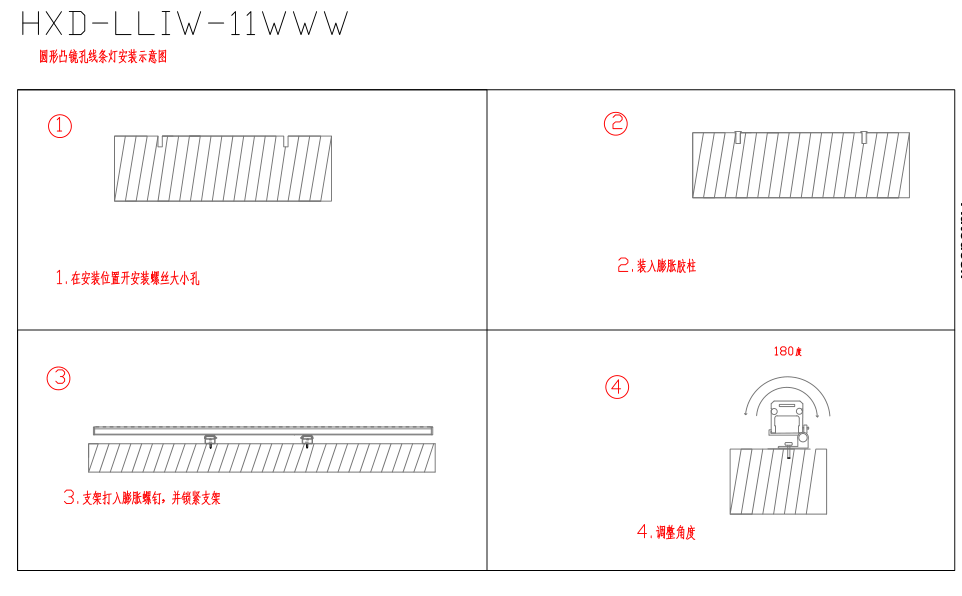

  • Product Installation Diagram 安装示意图

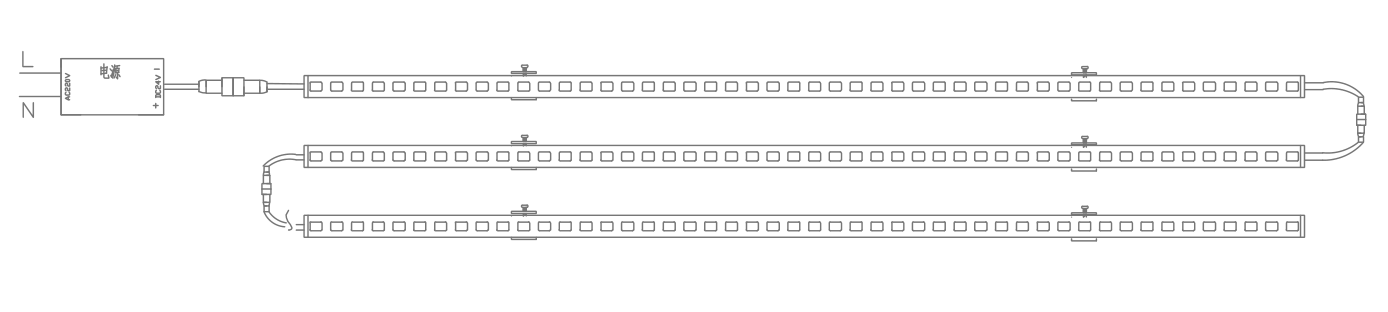

  • Product Circuit Diagram   产品极连图

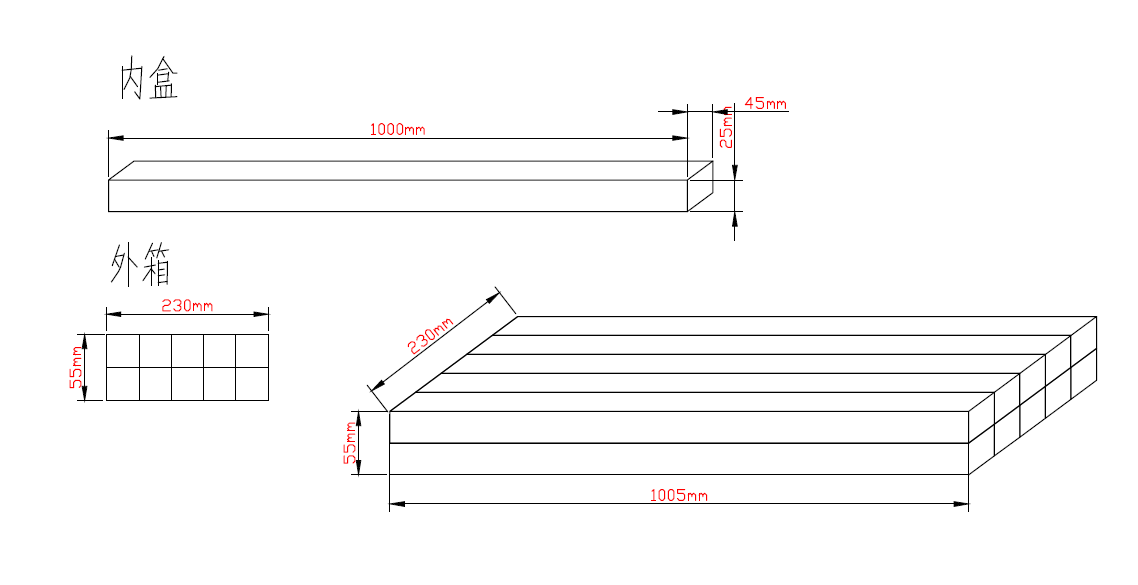

Packing  包装
